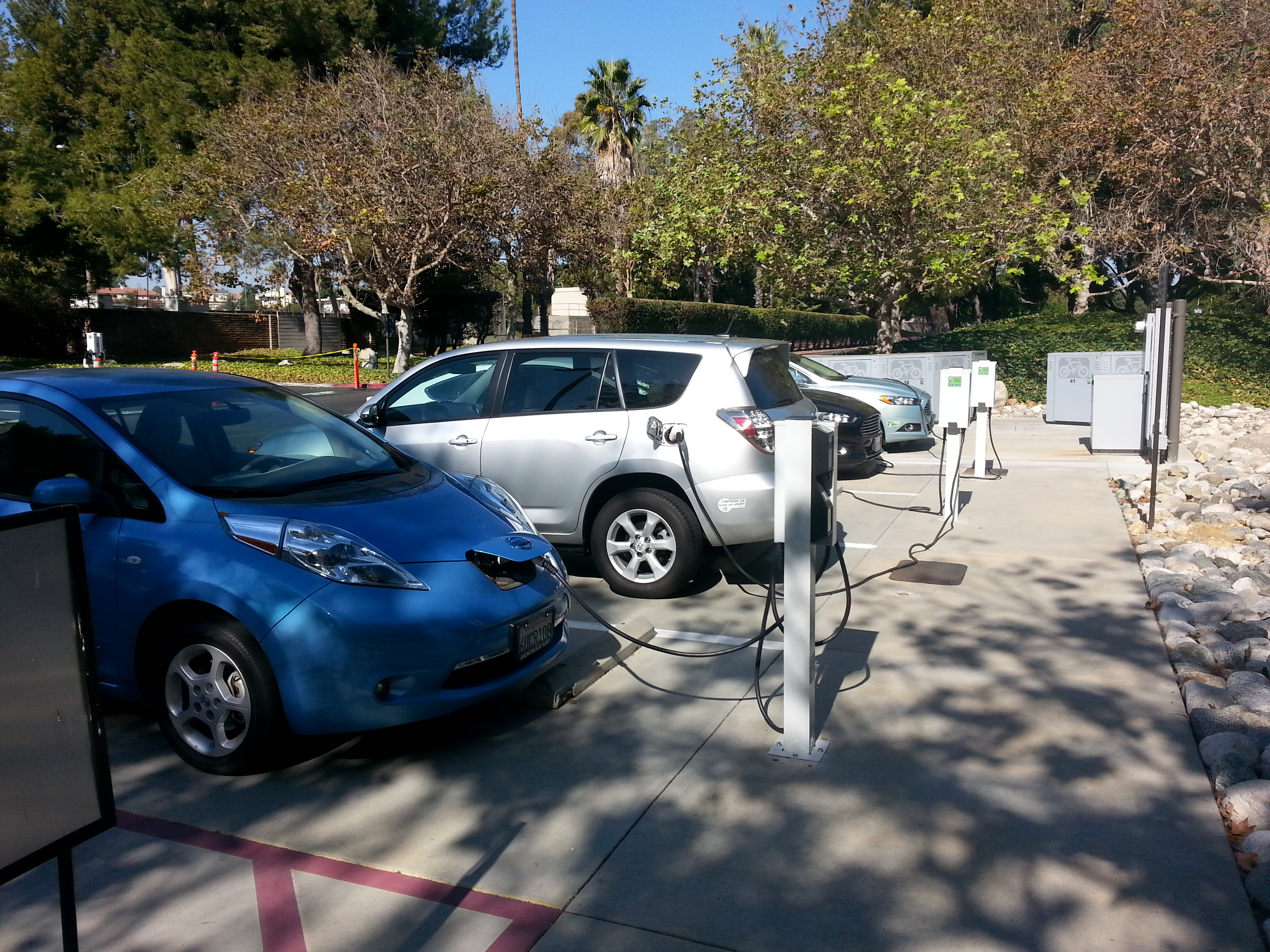

The above photo is one of EVSE LLC's installations at Southern California Edison's Workplace charging locations, the largest smart grid/automated demand response deployment in the world. SCE chose the economical but smart 3703 model. See this article to learn more about EVSE LLC and Workplace Charging.

With installations at major US utilities, state and local governments, universities, airports and parking facilities, EVSE LLC is an established innovator in the industry. EVSE LLC's 3703 ChargeWorks charger is a competitively priced Level 2 and Level 1, 7.2 KW single or dual wall- or pole-mounted EVSE charger, and as with all EVSE LLC chargers, the 3703 can operate standalone or on a network, including Greenlots Open Charge Protocol (OCPP) to ensure universal access for all EV drivers - no member cards needed.

Smart Charging Stations from EVSE LLC!
EVSE LLC's chargers are smart grid ready and now accept Automated Demand Response signals that control pricing and power during peak demand cycles. With a full line of electric car charging stations, charger network management options including OCPP, usage reporting, payment options and EV charger testers, EVSE LLC offers charging solutions that adapt to your operations.

AutoCoil Charger AutoCoil Charger AutoCoil Charger AutoCoil Charger AutoCoil Charger



Electric Vehicle Chargers Designed to Integrate with Parking Payment and Access Systems

Designed to integrate with Amano McGann and other parking payment and access systems, EVSE LLC chargers are a perfect fit for the parking industry. And EVSE LLC's chargers also integrate with the leading campus cashless card systems from CBORD and Blackboard. Why add an extra payment processing system or secure access system when you can use what's already in place? Download Specifications Sheet


Overview

  • Cable Length: 17 feet
  • Height to Lot Surface: 19.18 inches" high
  • Width, Single Unit: 10.78 inches" wide
  • Width, Dual Unit: 25 inches" wide
  • * Patent Pending



Environmental

  • NEMA 3R
  • Operation Temp: ‐30°C to 50° C (‐22°F to 122°F)Ambient
  • Humidity: Up to 95% Non‐Condensing
  • Cable designed for durability and flexibility at -50C

Operation

  • Ethernet, Cellular & Other
  • Radio Communications,
  • Wi‐Fi Compatible
  • Networks: Web‐Based, LAN, WAN, Cellular,
  • OCPP (Open Charge Protocol)
  • Power Monitoring: Integration with 3rd Party Monitoring Systems
  • Activate via On/Off, RFID, Credit Card, Magnetic Stripe Tickets, Mobile App, Automated Demand Response
  • OCPP Charger Network Management

Communication

  • Safety Standards: UL 2231-1 & 2231-2
  • UL 2594
  • NEC 625 Compliant
  • CAN/CSA C22.2 No. 61010-1/R2009
  • UL 61010-1/R:2008
  • EN 61010-1:2009
  • Personal Protection: UL 2231 (CCID)??
  • EMI: FCC Part 15 Class A, Canadian ICES-003
  • ADA compliant per ADA 2010:
  • Section 308 height and reach
  • Section 309 cable pull is less than 5lbs

EV Charger Payment Modules & Stations

EV Charger Payment Module

EVSE LLC Payment Modules and Payment Stations can easily integrate with existing operations and systems. With state-of-charge monitoring and a variety of payment options, our payment solutions can provide revenue and tracking resources for public locations.

Charger Control Module Options

Overhead Vehicle Charger

Designed for a variety of public and private installations, our EV chargers automatic cable management system can be activated using a variety of controllers including on/off, RFID, proximity and parking stub.
